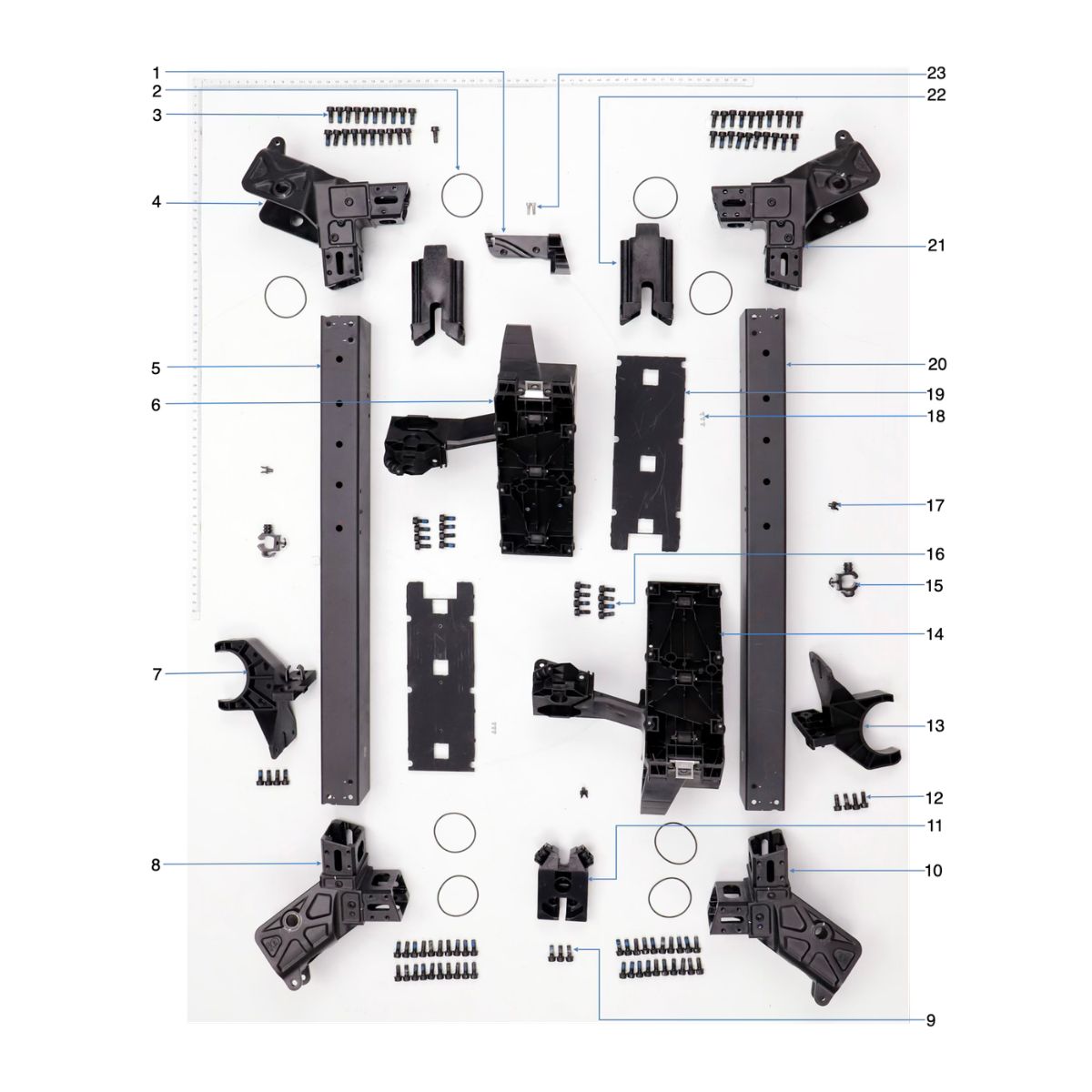

T60x Middle Frame Diagram
T60x Middle Frame parts list
This interactive diagram shows the 19 replacement parts in the T60x Middle Frame assembly of the Talos T60X. Click a number on the diagram above to see each part's live price and stock and add it to your cart, or open the text list below. In-stock orders placed by 3 PM CT (Mon–Fri) ship the same day from Ankeny, Iowa. Not sure which part you need? Call our tech support team at (888) 867-8986.
Show all 19 parts as a text list
| # | Part | Part number |
|---|---|---|

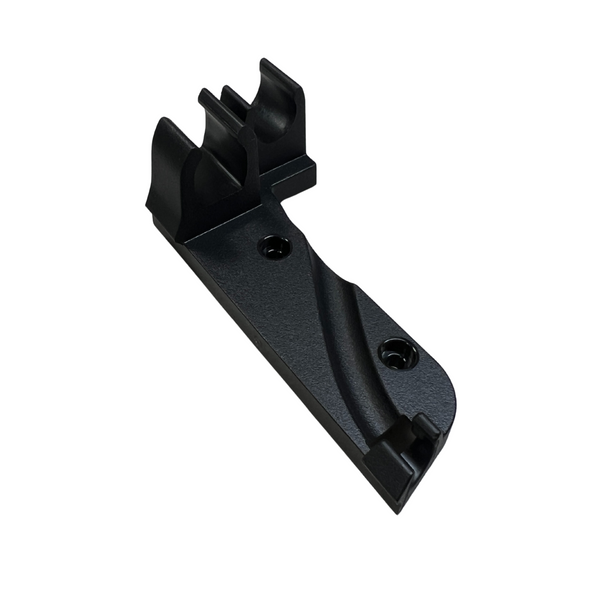

| 1 | Payload Cable Clip | YC.JG.ZS005090 |

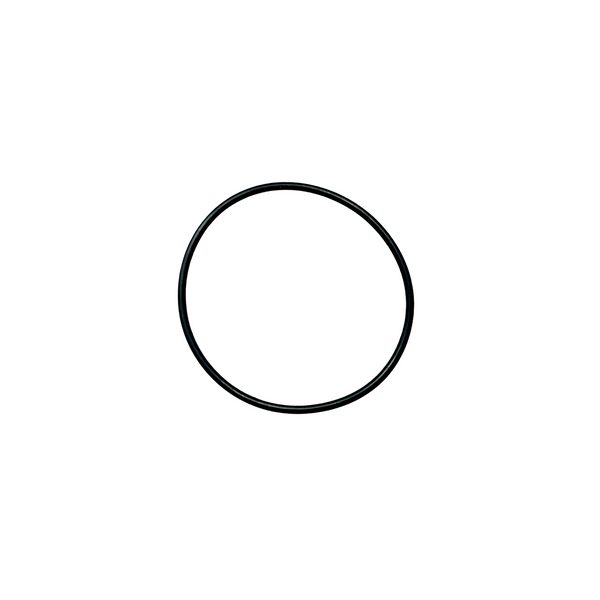

| 2 | Middle Frame Sealing Ring | YC.JG.MY001360 |
| 3, 9, 12, 16 | Screw M50-HC01300112-087052-4203-Y | YC.ST.LL000485 |

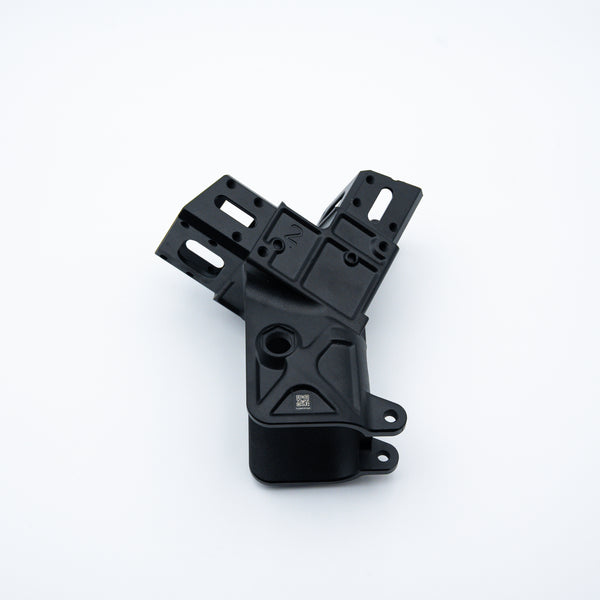

| 4 | M2 Aircraft Arm Connector | BC.AG.SS000901 |

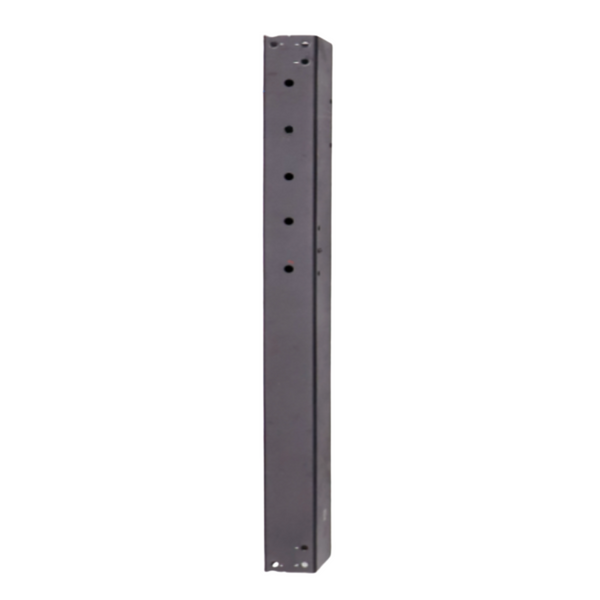

| 5 | Middle Frame Aluminum Tube (Left) | BC.AG.SS000896 |

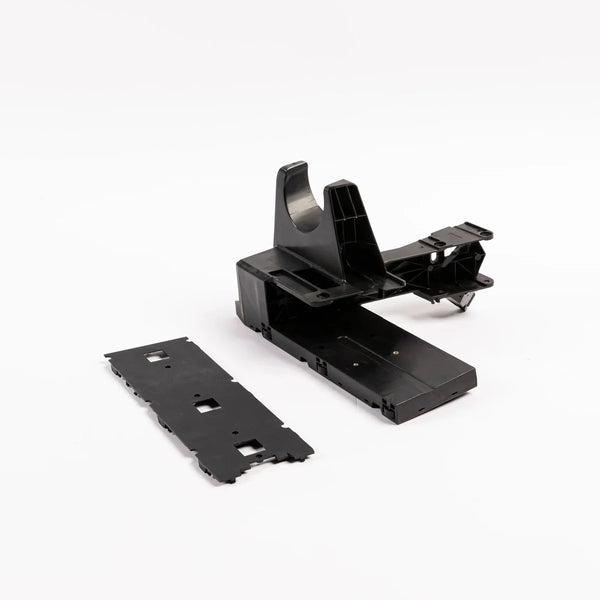

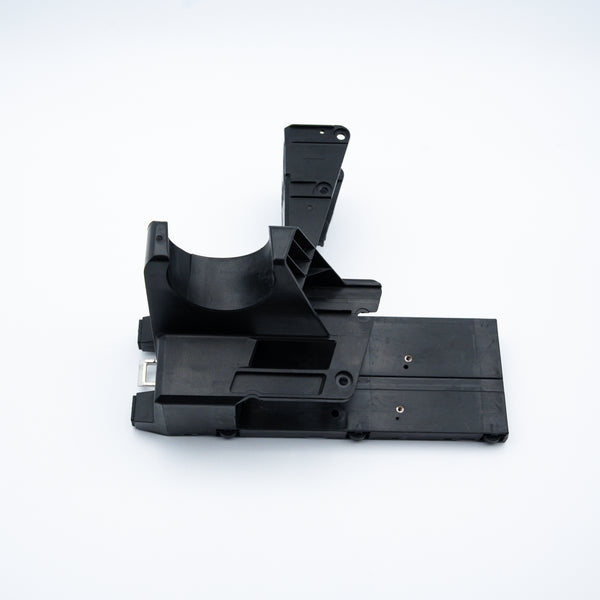

| 6 | Left Extension Battery Slider | BC.AG.SS000984 |

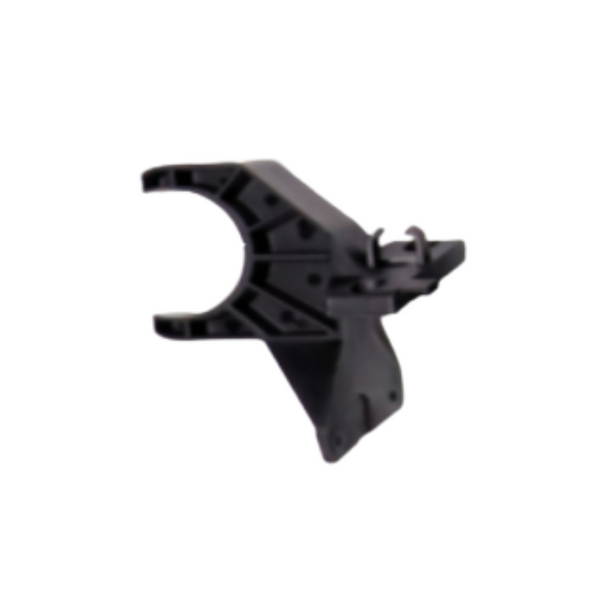

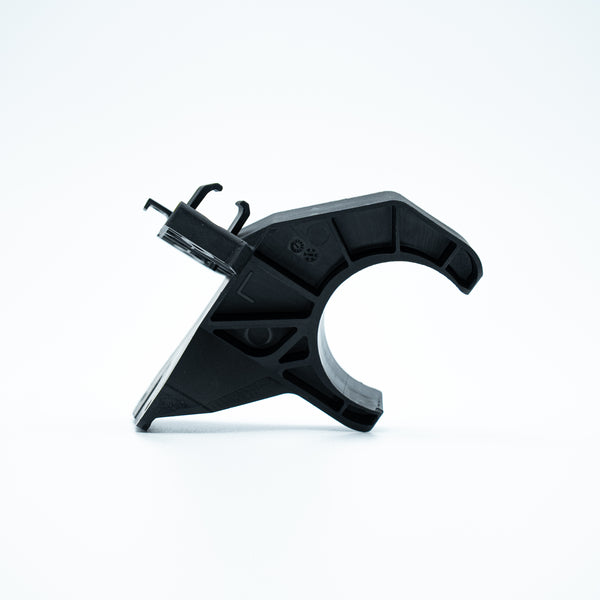

| 7 | Aircraft Arm Fixing Piece (Left) | YC.JG.ZS004546 |

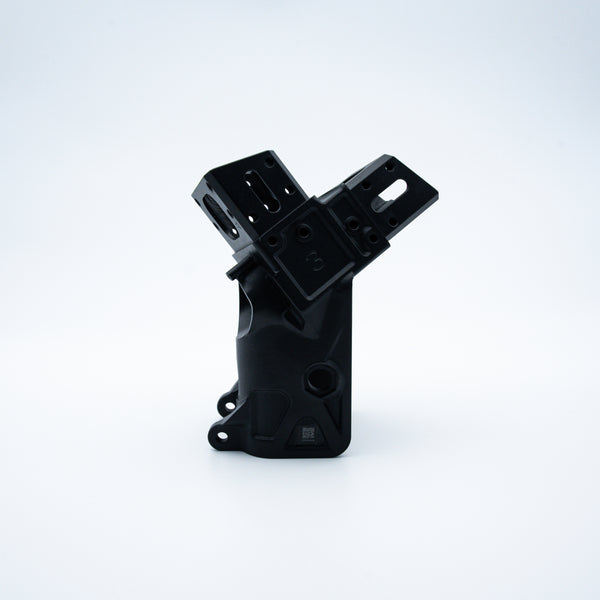

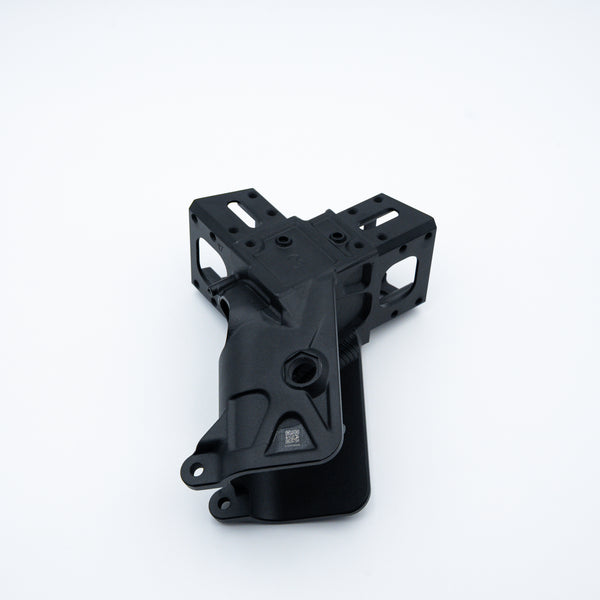

| 8 | M3 Aircraft Arm Connector | BC.AG.SS000902 |

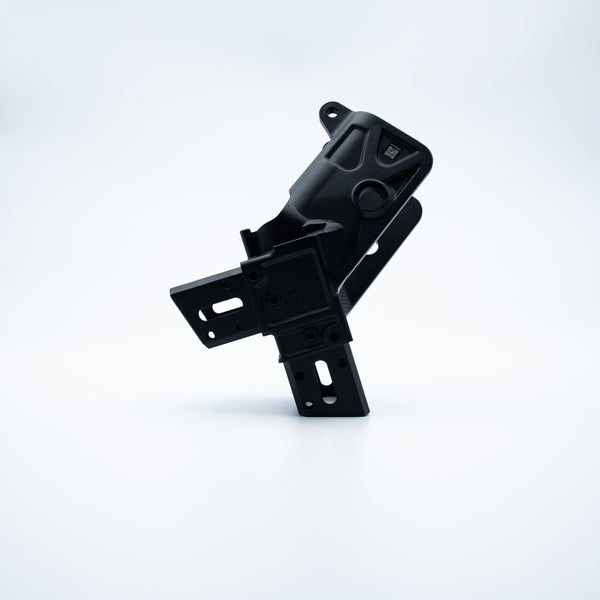

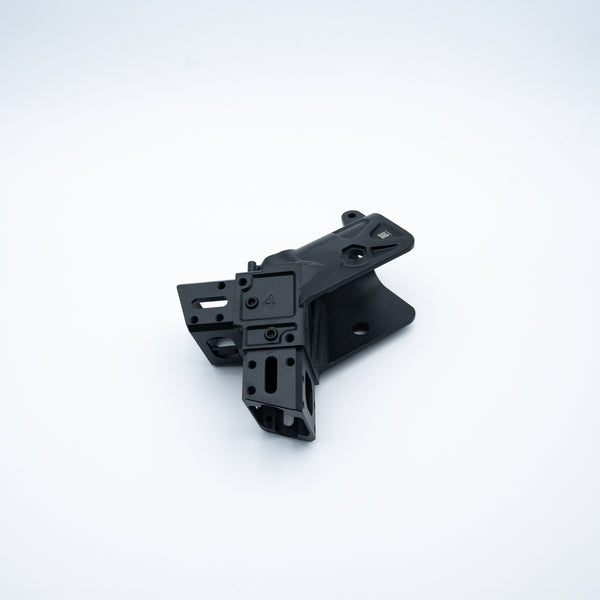

| 10 | M4 Aircraft Arm Connector | BC.AG.SS000903 |

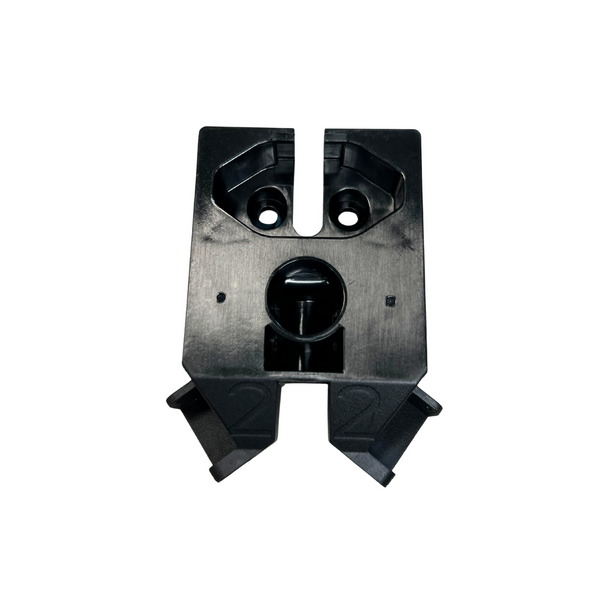

| 11 | Weight Sensor Bracket (Rear) | YC.JG.ZS004528 |

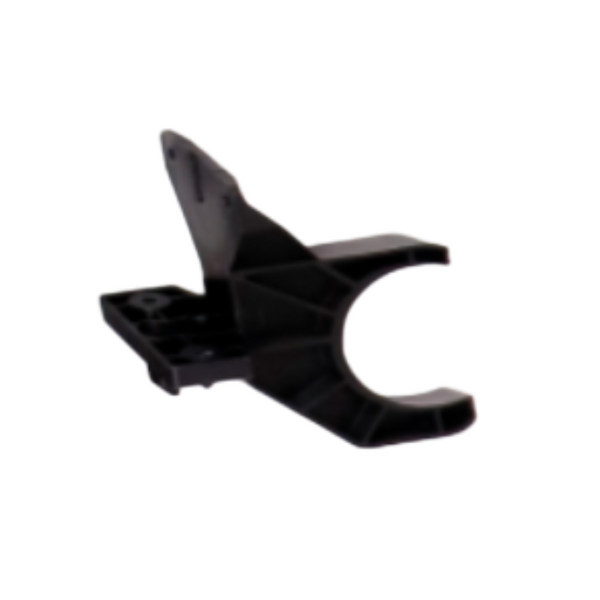

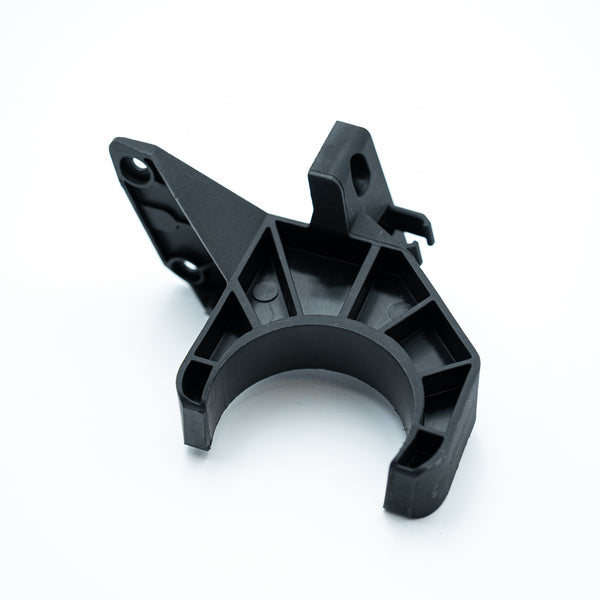

| 13 | Aircraft Arm Fixing Piece (Right) | YC.JG.ZS004672 |

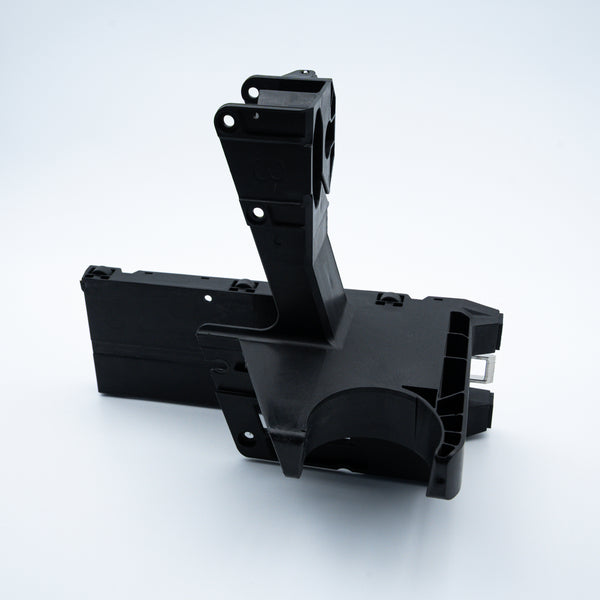

| 14 | Right Extension Battery Slider | BC.AG.SS000985 |

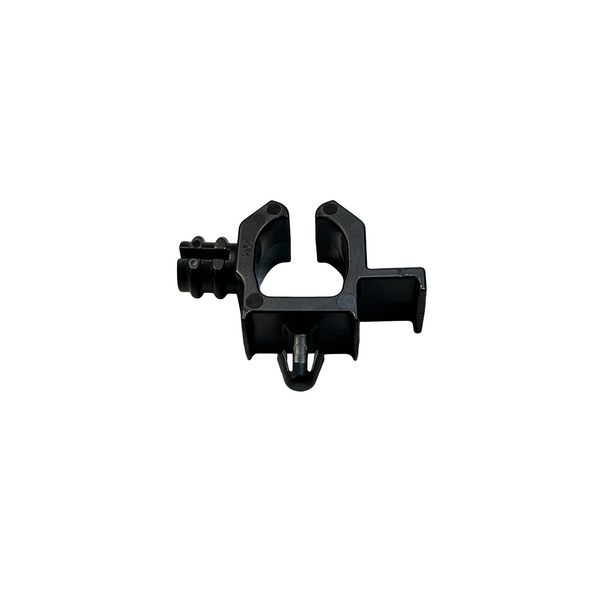

| 15 | Hose Clip | YC.JG.ZS004996 |
| 17 | Load Sensor Cable Clip | YC.JG.ZS002229 |
| 18 | Screw T20-PC00400040-040010-5103-N | YC.ST.LL000236 |

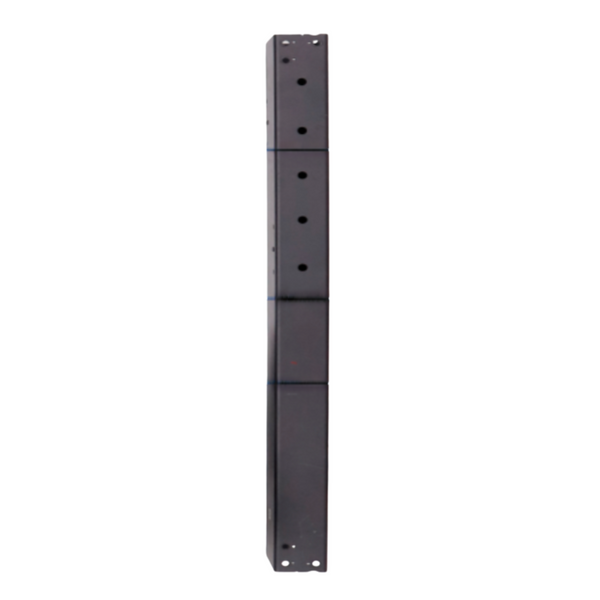

| 20 | Middle Frame Aluminum Tube (Right) | BC.AG.SS000897 |

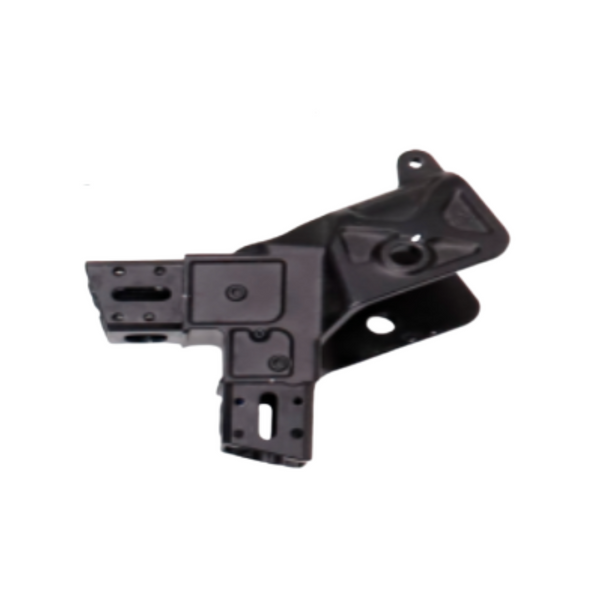

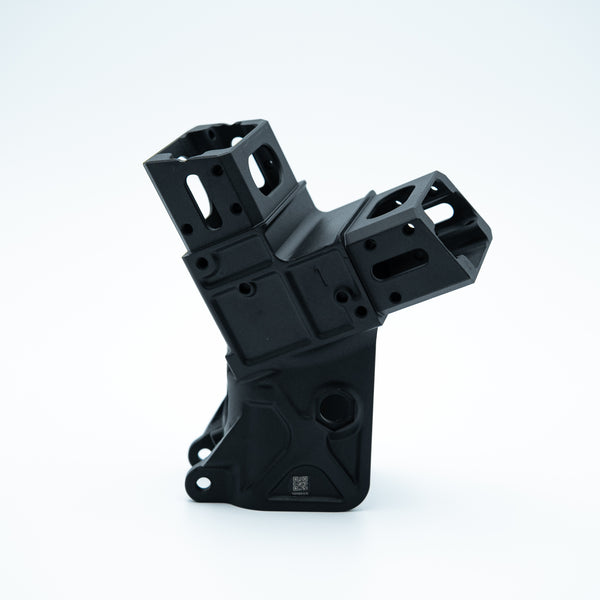

| 21 | M1 Aircraft Arm Connector | BC.AG.SS000900 |

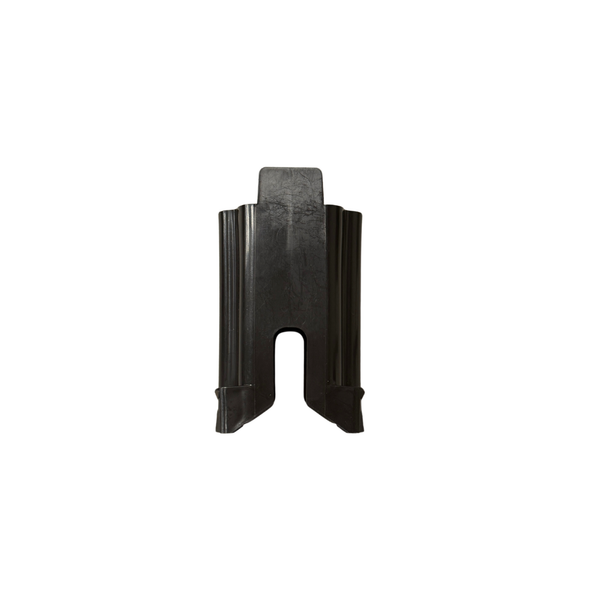

| 22 | Middle Frame Anti-Wear Sleeve | YC.JG.ZS004547 |
| 23 | Screw M30-HC100100-55-85 | YC.WJ.L00871 |
