T100 Spray Tank

Shop our

T100 Spray Tank Diagram

T100 Spray Tank parts list

This interactive diagram shows the 33 replacement parts in the T100 Spray Tank assembly of the DJI Agras T100. Click a number on the diagram above to see each part's live price and stock and add it to your cart, or open the text list below. In-stock orders placed by 3 PM CT (Mon–Fri) ship the same day from Ankeny, Iowa. Not sure which part you need? Call our tech support team at (888) 867-8986.

Show all 33 parts as a text list
#PartPart number

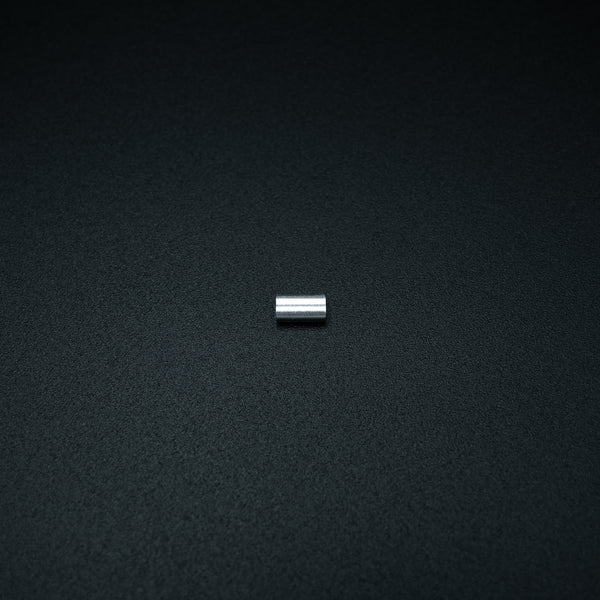

1Aluminum ClipYC.ST.AS000053
2Spray Tank LanyardYC.ST.AS000043
3Spray Tank Cover Waterproof Permeability CoverYC.JG.ZS002250
4Spray Tank Cover Waterproof Permeability FilmYC.JG.MY000678

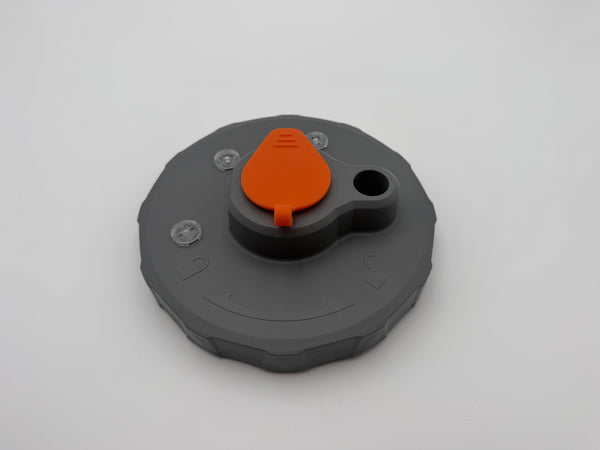

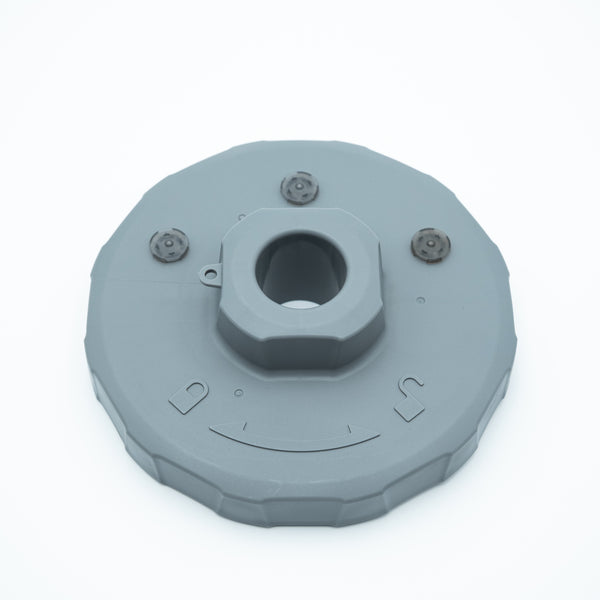

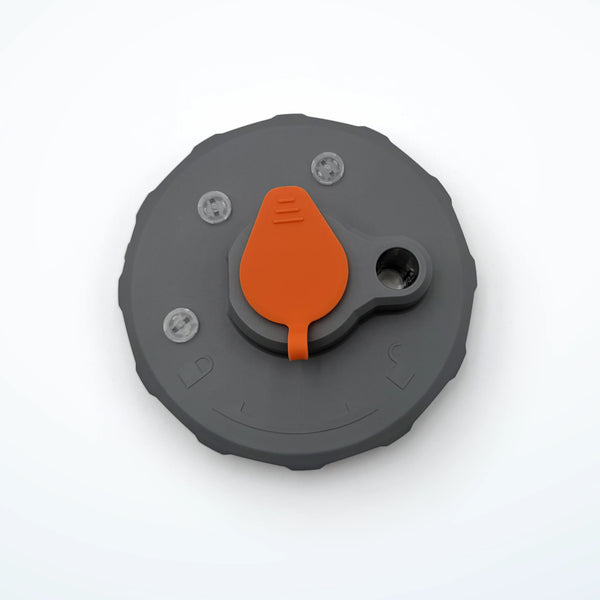

5Spray Tank CoverYC.JG.ZS006110
6Dosing Part Rubber CoverYC.JG.MY001721
7, 9, 14Screw - M25-HCW00960040-055020-5103-YYC.ST.LL000698
816-pin Connector Sealing RingYC.JG.MY001811
1016-pin Connector Plastic CoverYC.JG.ZS006291
11, 17, 29, 33, 37Screw M40-HC080080-68-85YC.WJ.L01234
12Payload Control BoardBC.AG.SS001068
1320-pin Connector Plastic CoverYC.JG.ZS006858
1520-pin Connector Sealing RingYC.JG.MY001989
16Impeller Pump BracketYC.JG.ZS006360
18Filter With 50 HolesYC.JG.ZS005454
19Spray Tank Y-tee Part NutYC.JG.ZS005453
20, 22Spray Tank Y-tee Part Sealing RingYC.JG.MY000687
21Spray Tank Filter Rubber Ring with 100 HolesYC.SJ.J01186
23Damping Rubber PadYC.JG.MY000845
24Spray Tank Y-tee PartYC.JG.ZS002232
25Water Outlet Rotation CoverYC.JG.ZS002233
26Liquid Level Gauge NutYC.JG.ZS004726
27Liquid Level Gauge Base Sealing RingYC.JG.MY001801

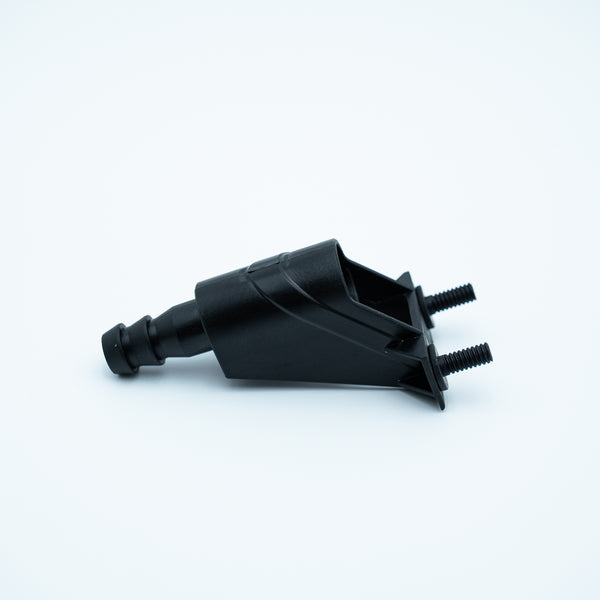

28Liquid Level Gauge BaseYC.JG.ZS006114
30Flow Meter BracketYC.JG.ZS004712
31Liquid level gauge componentsBC.AG.SS001122
32Liquid Level Gauge External Hose Rubber StopperYC.JG.ZS006843
34Liquid Level Gauge Signal CableYC.XC.XX001398
35Liquid Level Gauge External HoseYC.JG.JS000085
36Level gauge hose assemblyBC.AG.SS001121

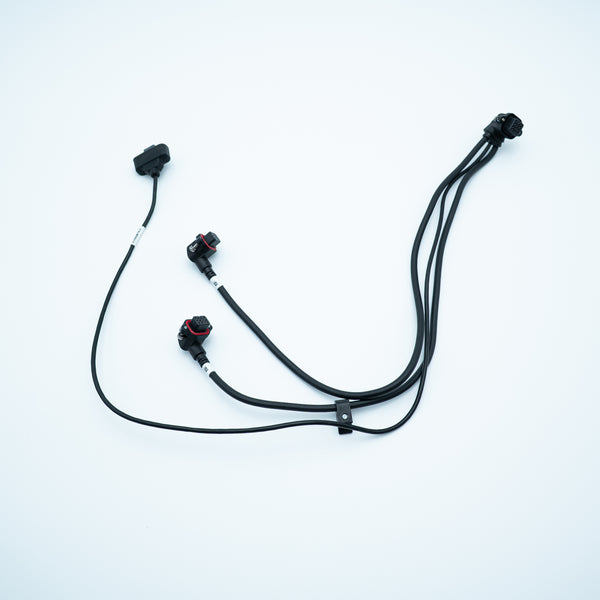

38Delivery Pump Flow Meter CableYC.XC.XX001396
39Spray Tank Inlet FilterYC.JG.ZS006111
40Spray Tank Cover Sealing RingYC.JG.MY001720
